K5 SERIES

K5 Series Electric Golf Carts

Compact four-seat profile for daily course transport.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 1 K5 Series configuration

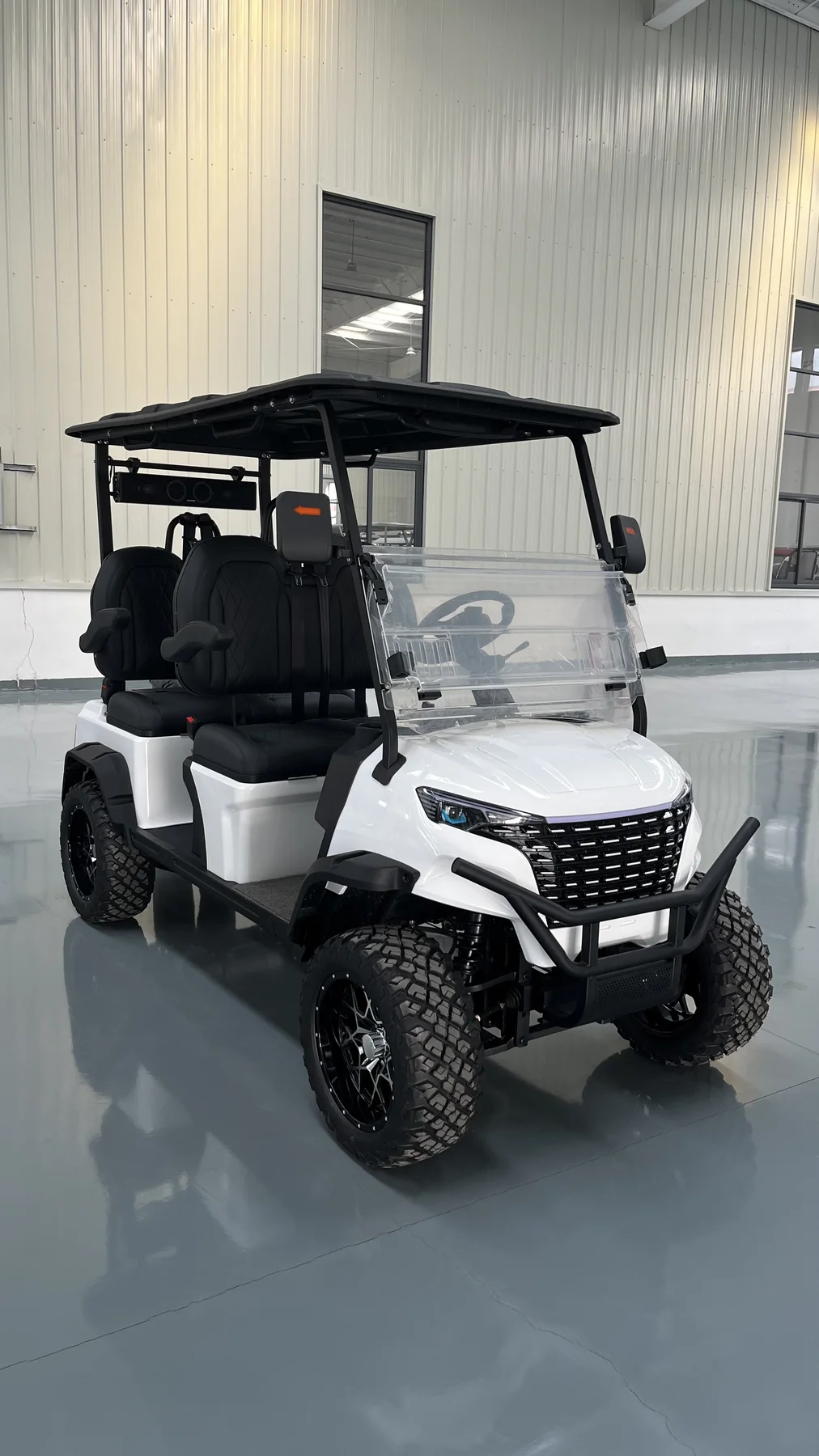

K5 Series Electric Golf Carts, 4-seat, view 1

4-seat01 / 06

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed: 30km/h
Maximum gradeability: 30%
Braking distance: ≤5m
Minimum turning radius: 4.5m
Minimum ground clearance: 180mm
Overall dimensions (L × W × H): 2900 × 1350 × 2100mm
Driving range: 70-110km
Wheelbase: 2100mm
Rated capacity: 4 people
Front / rear track: 900 / 1100mm
Curb weight: 470kg

Electrical system

Electric control: Fully intelligent electronic control
Battery: Maintenance-free battery
Motor: 3.5kW AC motor
Charger: On-board intelligent charger
Charging time: 8-9 hours to approximately 80% state of charge
Charging input voltage: 110-240V

Body and equipment

Seats: Linked-backrest seats with leather upholstery and high-resilience PU foam
Body structure: Steel frame with injection-moulded shell and ABS engineering plastic parts
Instrument: Instrument display including system voltage
Windshield: Ventilated folding acrylic windshield
Rear-view mirrors: Manual exterior rear-view mirrors
Lighting and signals: Combination LED headlights, turn signals, rear combination lamps, brake lamps and electric horn
Switches: Start, lighting, parking-position and forward/reverse switches
Frame: Steel structural frame
Exterior bumper: Removable iron-art bumper

Chassis and running gear

Steering wheel: Polyurethane-foam steering wheel
Power transmission: Continuously variable speed system
Steering system: Rack-and-pinion steering gear
Rear axle and suspension: Integral rear axle, high-strength leaf spring and cylindrical hydraulic shock absorber
Front axle and suspension: Double-wishbone front suspension
Braking system: Four-wheel front-disc/rear-drum hydraulic brakes, dual-circuit hydraulics and parking brake
Wheels and tyres: Tubeless off-road aluminium-alloy wheels with wheel-arch extensions

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Daily club operation, resort transfer and property mobility

Key advantage

An easy-to-manage four-seat format for frequent daily use

Configuration support

Configure appearance and seating details for your operation

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

K5 Series / 4-seat

Capacity: 4 seats

Overall dimensions (L × W × H): 2900 × 1350 × 2100mm
Driving range: 70-110km
Battery: Maintenance-free battery
Charging input voltage: 110-240V

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →

What should buyers know about the K5 Series?

Review all 1 listed configuration, then confirm the operating site and final requirements with XINYI.

Where is the K5 Series best used?

Daily club operation, resort transfer and property mobility

How many K5 Series configurations can I compare?

This page lists 1 configuration: 4-seat. Selecting a configuration updates the matched gallery and available specifications.

What is the main advantage of this vehicle series?

An easy-to-manage four-seat format for frequent daily use

What can be customised on this vehicle?

Configure appearance and seating details for your operation. The final configuration is confirmed against the operating requirements.
