B4 SERIES

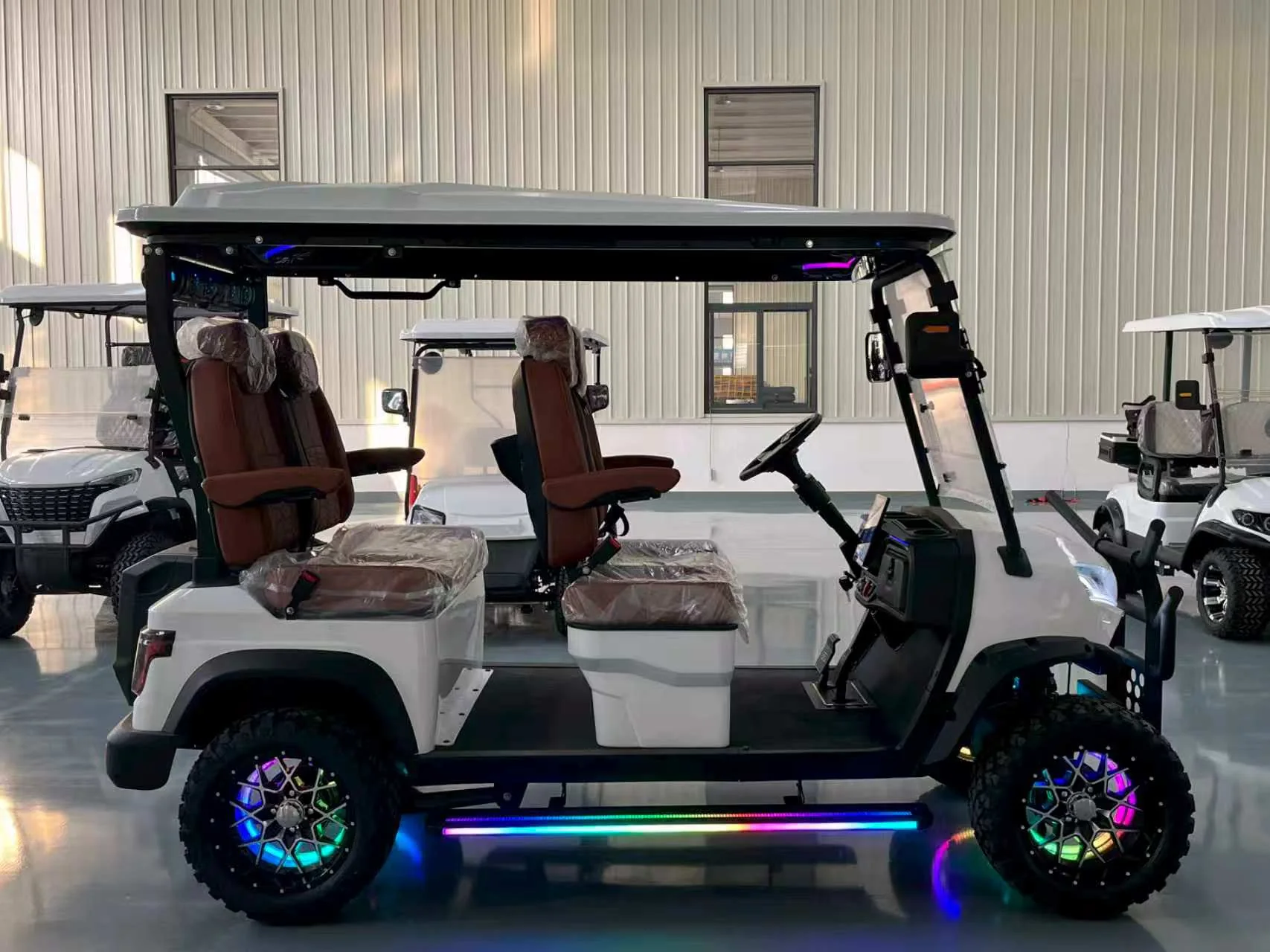

B4 Series Electric Golf Carts

Four-seat configuration with a distinctive lighting package.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 1 B4 Series configuration

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed
30km/h
Maximum gradeability
30%
Braking distance
≤5m
Minimum turning radius
4.5m
Minimum ground clearance
120mm
Overall dimensions (L × W × H)
3000 × 1300 × 2000mm
Driving range
70-110km
Wheelbase
2130mm
Rated capacity
4 people
Front / rear track
930 / 1020mm
Curb weight
650kg

Electrical system

Electric control
Fully intelligent electronic control
Battery
Maintenance-free battery
Motor
AC motor
Charger
On-board intelligent charger
Charging time
8-9 hours to approximately 80% state of charge
Charging input voltage
110-240V

Body and equipment

Seats
Luxury leather-fabric seats with high-resilience foam and three-point seat belts
Body structure
Steel frame with injection-moulded shell and ABS engineering plastic parts
Instrument
Instrument display including system voltage
Windshield
Ventilated folding acrylic windshield
Rear-view mirrors
Manual exterior rear-view mirrors
Lighting and signals
Combination LED headlights, turn signals, rear combination lamps, brake lamps and electric horn
Switches
Start, lighting, parking-position and forward/reverse switches
Frame
Steel structural frame
Canopy
Illuminated starry-sky canopy
Multimedia
Portrait-format multimedia display with CarPlay and cylindrical speaker
Side steps
Illuminated side steps
Exterior bumper
Removable iron-art bumper

Chassis and running gear

Steering wheel
Fore/aft-adjustable steering column
Power transmission
Continuously variable speed system
Steering system
Rack-and-pinion steering gear
Rear axle and suspension
Integral rear axle, high-strength leaf spring and cylindrical hydraulic shock absorber
Front axle and suspension
Double-wishbone front suspension
Braking system
Four-wheel front-disc/rear-drum hydraulic brakes, dual-circuit hydraulics and parking brake
Wheels and tyres
Tubeless off-road tyres with aluminium-alloy wheels

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Resorts, communities and evening guest reception

Key advantage

Distinctive lighting and a practical four-seat layout

Configuration support

Coordinate paint, seat materials and lighting details

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

B4 Series / 4-seat

Capacity: 4 seats

Overall dimensions (L × W × H)
3000 × 1300 × 2000mm
Driving range
70-110km
Battery
Maintenance-free battery
Charging input voltage
110-240V

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →

Find a golf cart by seating capacity

Start with passenger capacity, then compare seating layouts, specifications and operating fit.

Buying guide: what to confirm before requesting a quote →Golf cart journal: choosing, charging and maintenance →

What should buyers know about the B4 Series?

Review all 1 listed configuration, then confirm the operating site and final requirements with XINYI.

Where is the B4 Series best used?

Resorts, communities and evening guest reception

How many B4 Series configurations can I compare?

This page lists 1 configuration: 4-seat. Selecting a configuration updates the matched gallery and available specifications.

What is the main advantage of this vehicle series?

Distinctive lighting and a practical four-seat layout

What can be customised on this vehicle?

Coordinate paint, seat materials and lighting details. The final configuration is confirmed against the operating requirements.
