B SERIES

B Series Electric Golf Carts

Electric golf carts with 2 to 8 seats and a choice of forward- and rear-facing passenger layouts.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 7 B Series configurations

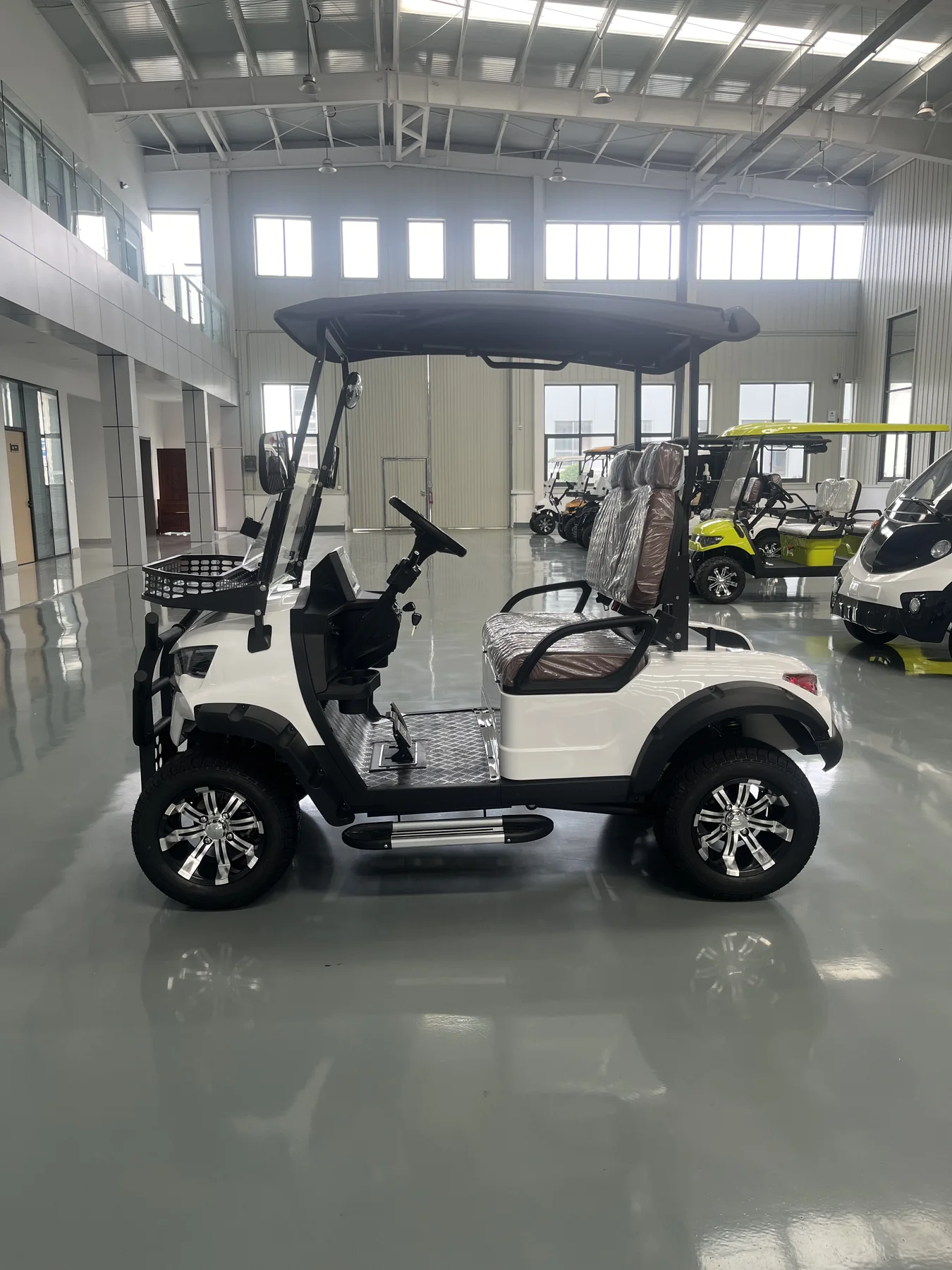

B Series Electric Golf Carts, 2-seat, view 1

2-seat01 / 05

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed: 25km/h
Gradeability: 15%
Braking distance: ≤5m
Minimum turning radius: 3.5m
Minimum ground clearance: 180mm
Overall dimensions (L × W × H): 2500*1350*1960
Driving range: Based on battery
Wheelbase: 1660
Rated capacity: 2 people
Front / rear track: 970/1055
Curb weight: 500

Electrical system

Electric control: 48V/60V/72V fully intelligent electronic control
Battery: 100AH maintenance-free dry battery (available in lithium battery options or larger capacity)
Motor: 3.5KW/4KW/5KW AC motor
On-board charger: Smart vehicle charger
Charging time: 6-8 hours (80% discharge rate)
Charging input: 220V

Body system

Seats: Townhouse seats (leather fabric + high-rebound PU seats) with customizable seat style and color
Body: Steel frame with injection-molded ABS shell
Instrument display: Instrument display (including voltage)
Rear-view mirrors: Manual exterior rearview mirror
Lighting and signals: LED headlight assembly, turn signal, rear light assembly, brake light, electric horn
Controls: Turn on the switch, lights, and gear shift
Frame: Steel frame
Steering wheel: Polyurethane foam steering wheel

Chassis system

Powertrain: Rear drive with continuously variable transmission
Steering system: Gear rack steering gear
Front axle & suspension: Front half-floating
Rear axle & suspension: Monocoque rear axle with high-strength steel leaf springs and tubular hydraulic shock absorbers
Braking system: Four-wheel drum hydraulic brake, dual-circuit hydraulic brake, parking brake
Wheels / tires: 12-inch vacuum radial tire with aluminum alloy wheels

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Golf clubs, resort paths and private properties

Key advantage

A compact footprint with a rugged visual character

Configuration support

Select seating, colors and appearance details around your property

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

B Series / 2-seat

Capacity: 2 seats

Overall dimensions (L × W × H): 2500*1350*1960
Driving range: Based on battery
Battery: 100AH maintenance-free dry battery (available in lithium battery options or larger capacity)
Charging input: 220V

B Series / 4-seat · forward-facing

Capacity: 4 seats

Overall dimensions (L × W × H): 3280*1350*1960
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

B Series / 4-seat · rear-facing

Capacity: 4 seats

Overall dimensions (L × W × H): 2950*1350*1960
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

B Series / 6-seat · forward-facing

Capacity: 6 seats

Overall dimensions (L × W × H): 3950*1350*1960
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

B Series / 6-seat · rear-facing

Capacity: 6 seats

Overall dimensions (L × W × H): 3570*1350*1960
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

B Series / 8-seat · forward-facing

Capacity: 8 seats

Overall dimensions (L × W × H): 4550*1350*1960
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

B Series / 8-seat · rear-facing

Capacity: 8 seats

Overall dimensions (L × W × H): 4210*1350*1960
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →

What should buyers know about the B Series?

Review all 7 listed configurations, then confirm the operating site and final requirements with XINYI.

Where is the B Series best used?

Golf clubs, resort paths and private properties

How many B Series configurations can I compare?

This page lists 7 configurations: 2-seat, 4-seat · forward-facing, 4-seat · rear-facing, 6-seat · forward-facing, 6-seat · rear-facing, 8-seat · forward-facing, 8-seat · rear-facing. Selecting a configuration updates the matched gallery and available specifications.

What is the main advantage of this vehicle series?

A compact footprint with a rugged visual character

What can be customised on this vehicle?

Select seating, colors and appearance details around your property. The final configuration is confirmed against the operating requirements.
