F SERIES

F Series Electric Golf Carts

Color-forward four-seat leisure configuration.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 1 F Series configuration

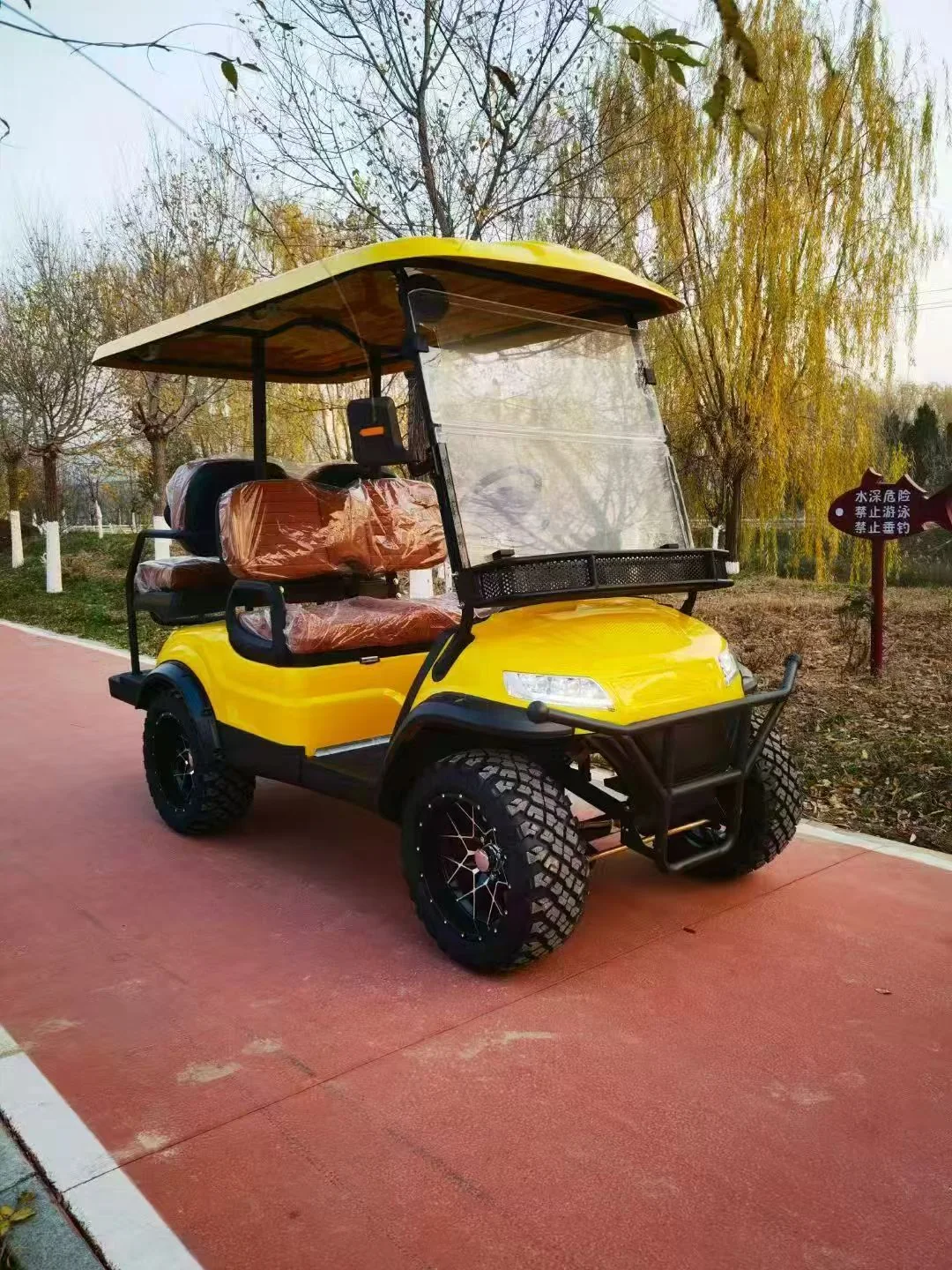

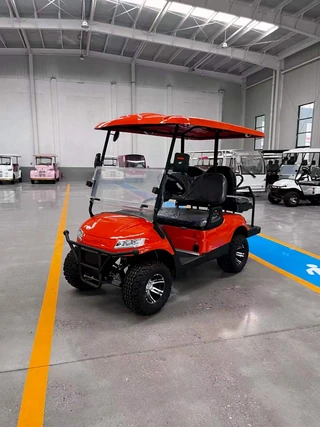

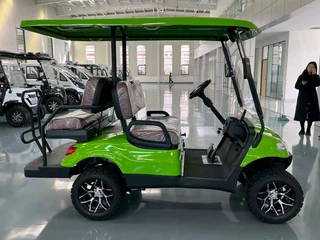

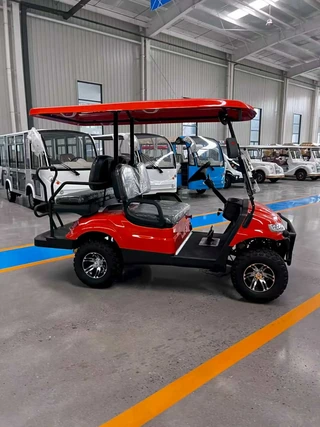

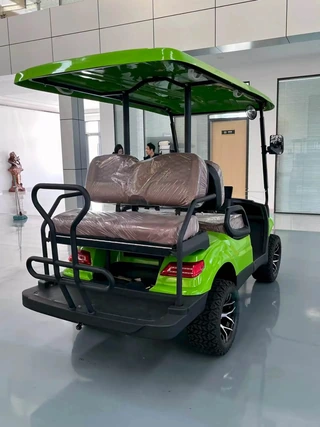

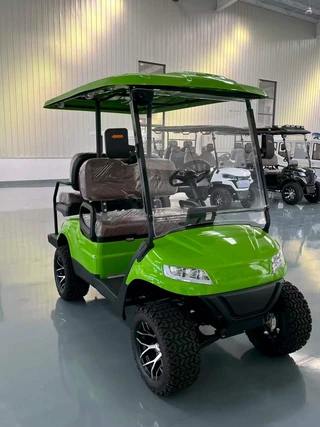

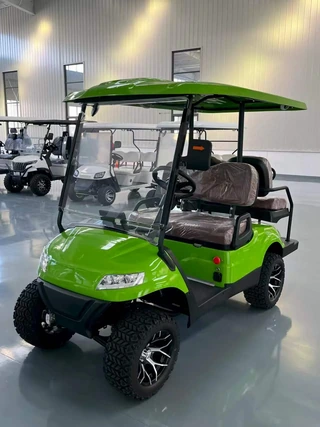

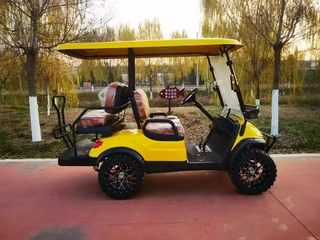

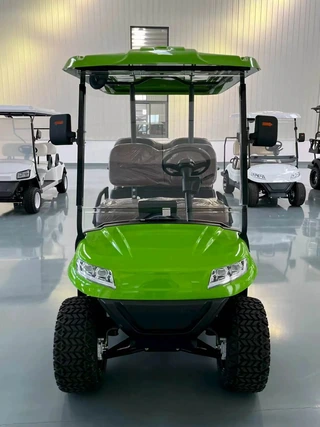

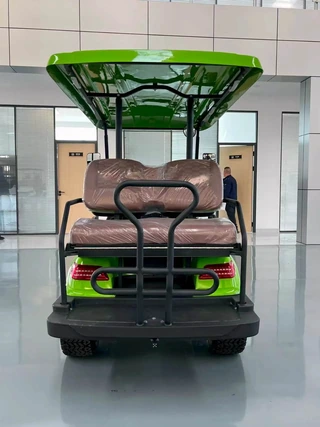

F Series Electric Golf Carts, 4-seat, view 1

4-seat01 / 11

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed: 30km/h
Maximum gradeability: 30%
Braking distance: ≤5m
Minimum turning radius: 3.2m
Minimum ground clearance: 120mm
Overall dimensions (L × W × H): 2800 × 1240 × 1850mm
Driving range: 70-110km
Wheelbase: 1680mm
Rated capacity: 4 people
Front / rear track: 940 / 1030mm
Curb weight: 470kg

Electrical system

Electric control: 48V / 60V / 72V fully intelligent electronic control
Battery: Maintenance-free battery or lithium battery
Motor: 3.5kW / 4kW / 5kW AC asynchronous motor
Charger: On-board intelligent charger
Charging time: 8-9 hours to approximately 80% state of charge
Charging input voltage: 110-240V

Body and equipment

Seats: Four-seat layout with upholstered seat cushions
Body structure: Steel frame with injection-moulded shell and ABS engineering plastic parts
Instrument: Instrument display including system voltage
Windshield: Ventilated folding acrylic windshield
Rear-view mirrors: Manual exterior rear-view mirrors
Lighting and signals: Combination LED headlights, turn signals, rear combination lamps, brake lamps and electric horn
Switches: Start, lighting, parking-position and forward/reverse switches
Frame: Steel structural frame

Chassis and running gear

Steering wheel: Polyurethane-foam steering wheel
Power transmission: Continuously variable speed system
Steering system: Rack-and-pinion steering gear
Rear axle and suspension: Integral rear axle, high-strength leaf spring and cylindrical hydraulic shock absorber
Front axle and suspension: MacPherson independent suspension / front-axle semi-floating layout
Braking system: Four-wheel front-disc/rear-drum hydraulic brakes, dual-circuit hydraulics and parking brake
Wheels and tyres: 12-inch off-road tubeless radial tyres

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Leisure properties, rental fleets and resort reception

Key advantage

Expressive colors and a versatile four-seat layout

Configuration support

Match body color, upholstery and wheels to your brand

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

F Series / 4-seat

Capacity: 4 seats

Overall dimensions (L × W × H): 2800 × 1240 × 1850mm
Driving range: 70-110km
Battery: Maintenance-free battery or lithium battery
Charging input voltage: 110-240V

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →

What should buyers know about the F Series?

Review all 1 listed configuration, then confirm the operating site and final requirements with XINYI.

Where is the F Series best used?

Leisure properties, rental fleets and resort reception

How many F Series configurations can I compare?

This page lists 1 configuration: 4-seat. Selecting a configuration updates the matched gallery and available specifications.

What is the main advantage of this vehicle series?

Expressive colors and a versatile four-seat layout

What can be customised on this vehicle?

Match body color, upholstery and wheels to your brand. The final configuration is confirmed against the operating requirements.
