TOURING

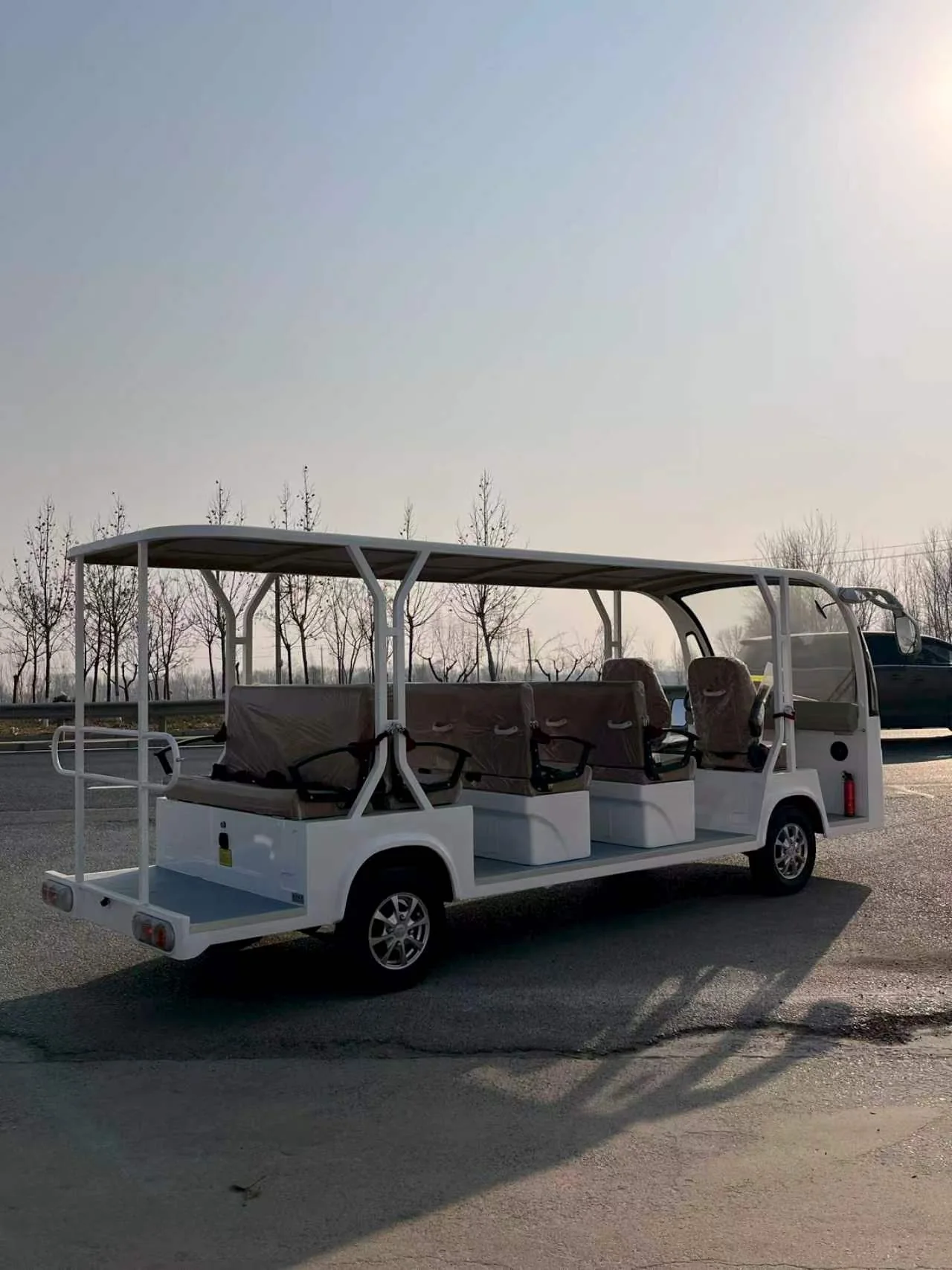

Sightseeing Vehicle

Open multi-row passenger transport for managed routes.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 1 Sightseeing Vehicle configuration

Multi-seat01 / 04

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed: 30km/h
Maximum gradeability: 25%
Braking distance: ≤5m
Minimum turning radius: 6.15m
Minimum ground clearance: 200mm
Overall dimensions (L × W × H): 5150 × 1500 × 2080mm
Driving range: ≥80km
Wheelbase: 2910mm
Rated capacity: 14 people
Front / rear track: 1290 / 1285mm
Curb weight: 930kg

Electrical system

Electric control: Fully intelligent electronic control
Battery: Maintenance-free battery or lithium battery
Motor: 4kW / 5kW / 7.5kW DPD AC motor
Charger: Built-in waterproof on-board intelligent charger
Charging time: 8-9 hours to approximately 80% state of charge
Charging input voltage: 110-240V

Body and equipment

Seats: Bus-foam seats with high-resilience upholstery
Frame and body: Steel frame with integrated stamped body
Paint: Automotive metallic paint
Windshield: Tempered-glass windshield
Instrument: Digital display including voltage
Lighting and signals: Combination headlights, turn signals, rear lamps, brake lamps and electric horn
Switches: Start, lighting, parking-position and forward/reverse switches
Doors: Metal doors

Chassis and running gear

Steering wheel: 36cm steering wheel
Steering system: Rack-and-pinion steering with directional assistance
Front axle and suspension: Independent suspension
Rear axle and suspension: Integral rear axle, high-strength leaf spring and cylindrical hydraulic shock absorber
Braking system: Hydraulic brake, dual-circuit hydraulic system and parking brake
Tyres: 155R12 tubeless radial tyres

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Scenic areas, resorts, campuses and guided tours

Key advantage

Open multi-row access with clear passenger visibility

Configuration support

Confirm passenger layout, canopy and route-specific details

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

Sightseeing Vehicle / Multi-seat

Capacity: Multi-seat

Overall dimensions (L × W × H): 5150 × 1500 × 2080mm
Driving range: ≥80km
Battery: Maintenance-free battery or lithium battery
Charging input voltage: 110-240V

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →
