UTILITY CART

Classic Cargo Golf Cart

Compact two-seat cart with a practical rear cargo bed.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 1 Classic Cargo Golf Cart configuration

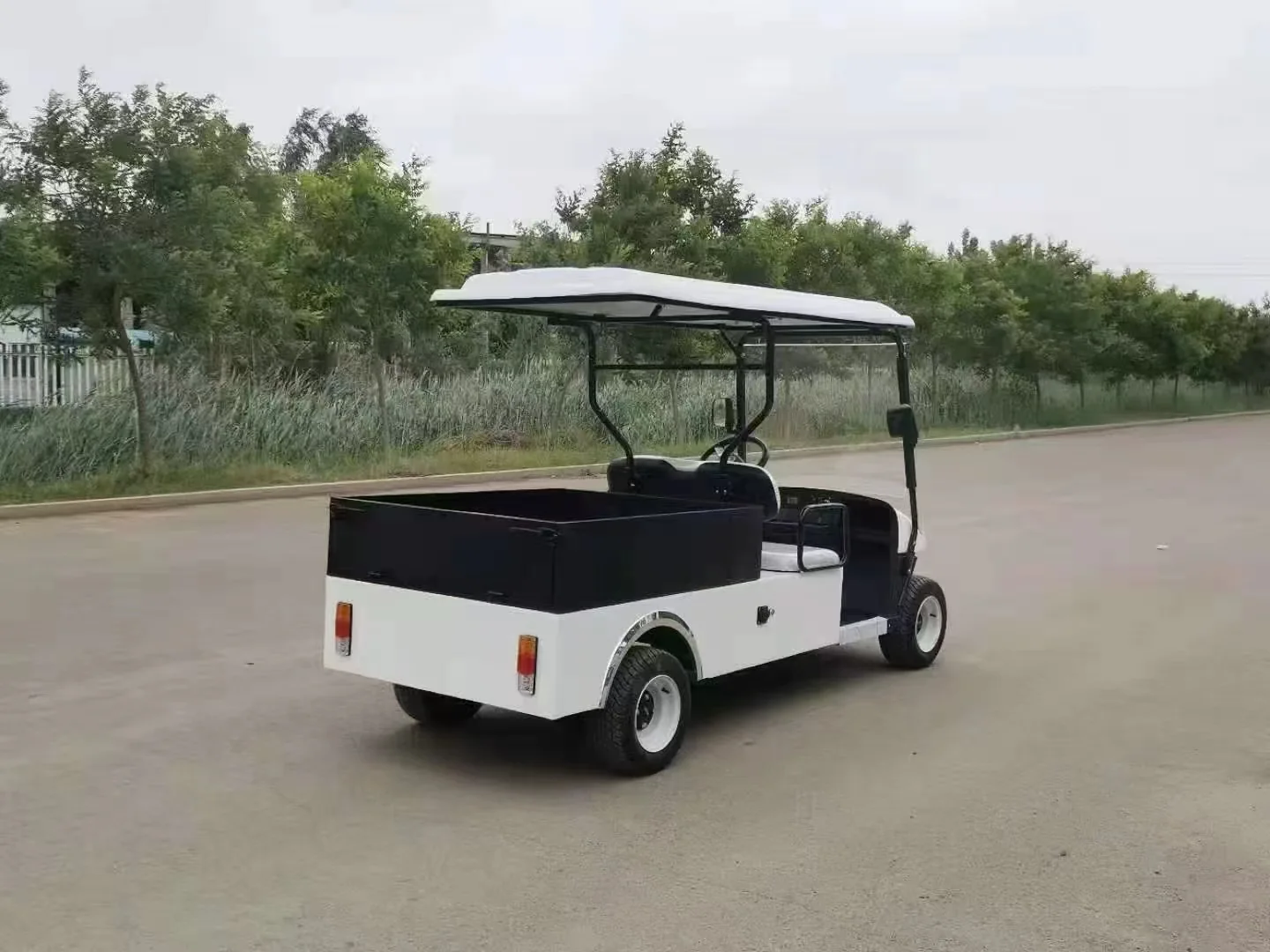

Classic Cargo Golf Cart, 2-seat cargo bed, view 1

2-seat cargo bed01 / 04

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed: 30km/h
Gradeability: 15%
Braking distance: ≤6m
Minimum turning radius: 5.6m
Minimum ground clearance: 150mm
Overall dimensions (L × W × H): 3900*1200*1850
Driving range: Determined by the selected battery
Wheelbase: 3100
Rated capacity: 2 people
Front / rear track: 900/1000
Curb weight: 600

Electrical system

Electric control: 48 V / 60 V / 72 V fully intelligent electric control
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Motor: 3.5 / 4 / 5 kW AC motor options
On-board charger: Intelligent on-board charger
Charging time: 8-9 hours (from 80% discharge)
Charging input: 220V

Body system

Seats: White leather-trimmed high-resilience PU bench seats; color customizable
Body: Steel frame with injection-molded ABS engineering-plastic body panels
Instrument display: Instrument display with voltage readout
Rear-view mirrors: Manual exterior rear-view mirrors
Lighting and signals: LED headlamps, indicators, rear combination lamps, brake lamps and electric horn
Controls: Start, lighting and forward/reverse controls
Frame: Steel structure frame
Steering wheel: Polyurethane-foam steering wheel

Chassis system

Powertrain: Rear drive with continuously variable transmission
Steering system: Rack-and-pinion steering
Front axle & suspension: Semi-floating front axle
Rear axle & suspension: Integral rear axle, high-strength leaf springs and hydraulic dampers
Braking system: Four-wheel hydraulic drum brakes, dual-circuit hydraulics and parking brake
Wheels / tires: 205/50-10 tubeless radial tires

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Golf-course maintenance, resort service and property logistics

Key advantage

A two-seat cab paired with a useful rear cargo bed

Configuration support

Specify cargo-bed details, colors and working accessories

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

Classic Cargo Golf Cart / 2-seat cargo bed

Capacity: 2 seats

Overall dimensions (L × W × H): 3900*1200*1850
Driving range: Determined by the selected battery
Battery: 100 Ah maintenance-free battery; lithium or higher-capacity battery optional
Charging input: 220V

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →
