SPECIAL PURPOSE

Electric Ambulance

Enclosed emergency-support vehicle for controlled sites.

Final configuration is confirmed against your operating requirements.

CONFIGURATION

Compare 1 Electric Ambulance configuration

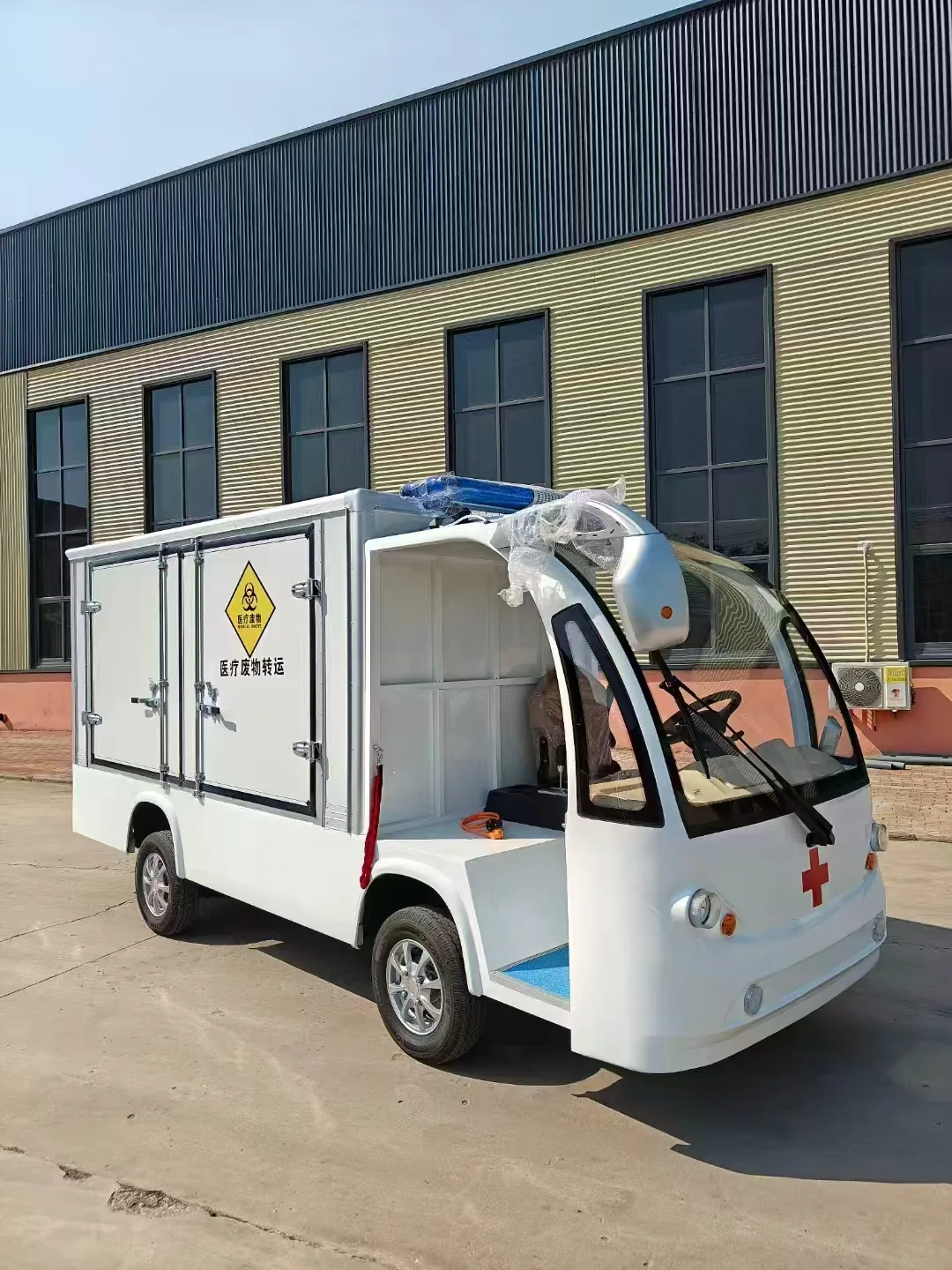

Electric Ambulance, Medical support, view 1

Medical support01 / 01

VEHICLE SPECIFICATIONS

Available vehicle specifications

Review the listed details for this seating layout, then confirm the project configuration with our team before ordering.

Technical parameters

Maximum speed: 30km/h
Maximum gradeability: 25%
Braking distance: ≤5m
Minimum turning radius: 6m
Minimum ground clearance: 200mm
Overall dimensions (L × W × H): 3920 × 1550 × 2020mm
Driving range: ≥80km
Wheelbase: 2095mm
Rated capacity: 5 people
Front / rear track: 1290 / 1285mm
Curb weight: 820kg

Electrical system

Controller: 48V / 60V / 72V fully intelligent electronic control
Battery: Maintenance-free battery or lithium battery
Motor: 4kW / 5kW / 7.5kW DPD AC motor
Charger: Built-in waterproof on-board intelligent charger

Body and equipment

Seats: High-grade simulated-leather seats
Frame and body: Steel frame with metal body
Paint: Automotive metallic paint
Windshield: Tempered-glass windshield
Instrument: Instrument display including voltage
Lighting and signals: Combination headlights, turn signals, rear lamps, brake lamps and electric horn
Switches: Start, lighting, parking-position and forward/reverse switches
Doors: Metal doors
Climate control: Cooling and heating

Chassis and running gear

Steering wheel: 36cm steering wheel
Steering system: Rack-and-pinion steering with directional assistance
Front axle and suspension: Independent suspension
Rear axle and suspension: Integral rear axle, high-strength leaf spring and cylindrical hydraulic shock absorber
Braking system: Hydraulic brake, dual-circuit hydraulic system and parking brake
Tyres: 155R12 tubeless radial tyres

Specifications apply to the selected configuration. Where no unit is shown, confirm it before ordering. Confirm charging input, battery specification and final performance for your destination and configuration.

VEHICLE FIT

Designed around the work

Best for

Parks, large campuses, scenic areas and controlled sites

Key advantage

An enclosed electric support layout for controlled-site response

Configuration support

Final equipment and layout must be confirmed for the intended site

Compare every configuration in this series

Compare seating layouts against your route. Select a configuration to view its matched gallery and complete specifications.

Electric Ambulance / Medical support

Capacity: Special purpose

Overall dimensions (L × W × H): 3920 × 1550 × 2020mm
Driving range: ≥80km
Battery: Maintenance-free battery or lithium battery

We welcome inquiries worldwide. Include your destination, charging setup, operating use and quantity to discuss the right configuration for your project. Read the purchasing checklist →
